Description
Specifications:

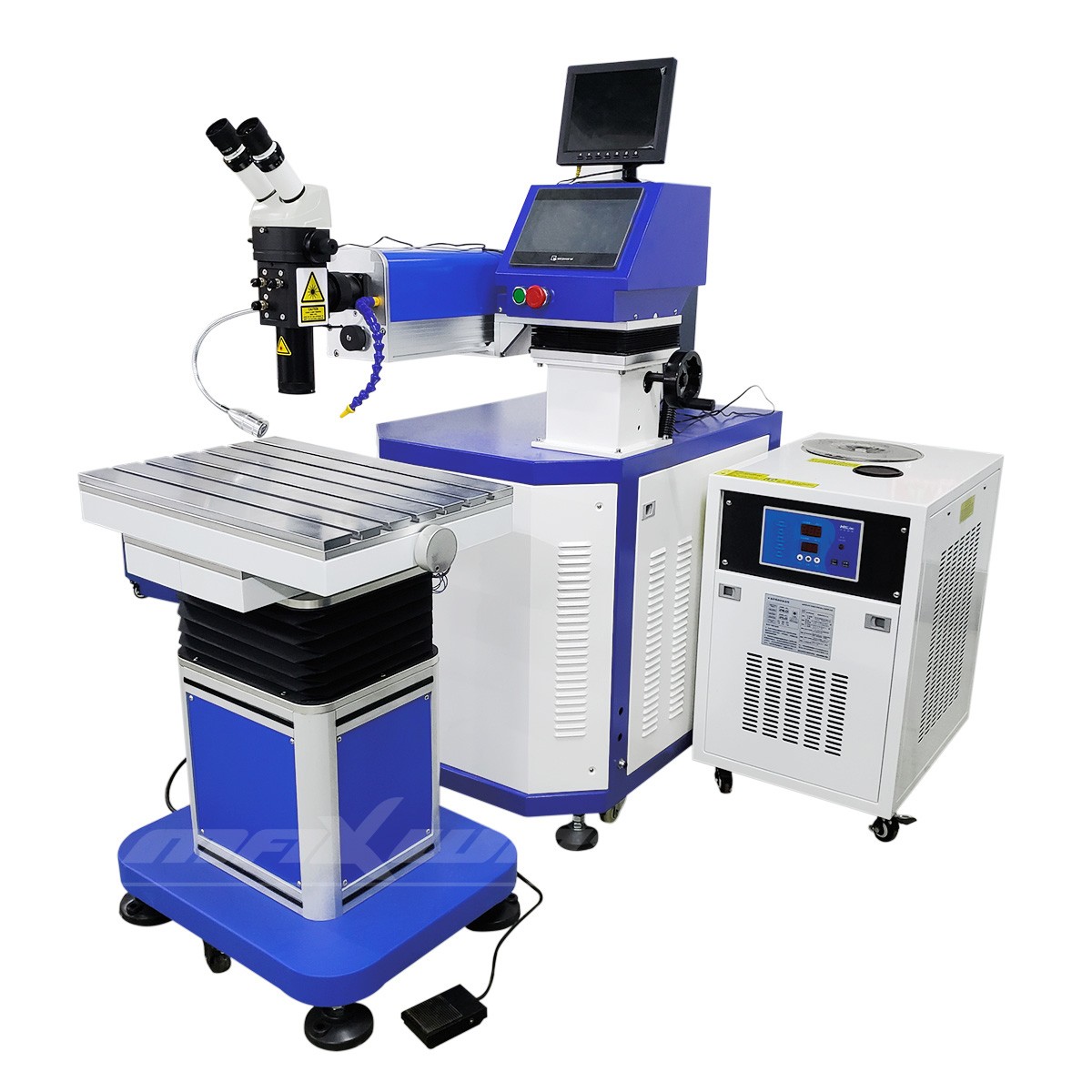

SPECIFICATIONS FOR LASER MOULD WELDING MACHINE
Type
MW-200M
MW-300M
MW-500M
Three Axis Table
X=250mm,Y=180mm
Table Capacity
≤200KG
Machine Battery
220V±10%/50/60z
380V±10%/50/60Hz
Laser Type
Nd:YAG Pulse Xenon Lamp
Spot Adjusting Range
0.1~3mm
Peak Wavelength
1064nm
Pulse Width
≤20ms
Rated Output Power
180W
270W
460W
Maximum Laser Power
200W
300W
500W
Pulse Frequency
≤50Hz
Laser Output Focal Length
100mm
Laser Cooling
Water Cooling
Monitor
Microscope( Rotate 360º)
Protective Gas
1(argon)
Cold Water Capacity
2700W
3500W
6500W
Wire Diamter
0.1mm~0.6mm
0.1mm~0.8mm
0.1mm~1.0mm
Dimension
Main Machine : 1250*580*1200mm
Chiller : 700*500*900mm
Advantages:
1.Antomatic table with rotary: machine can weld various shapes of mold and have good performance in flat and cylinder soldering.
2.Wide range of application: all kinds of metal like gold,sillver,bronze,aluminum.steel and titanium
3.High power with high speed, the energy power of laser can reach 100J,and freqency of laser can be increased.
4.Easy operation,the laser control system is very simple,user can learn it after only 20 minutes training.
Features:
1. UK ceramic light-gathering cavity, anti-corrosion, heat-resistance, chamber(8-10 years of life), more than 8 million times life of Xenon lamp;
2. Using the World's most advanced automatic shading system, It eliminates the stimulation to the eyes in work;
3.Laser head can rotate 360 degrees, overall light path can rotate 360 degrees, electric lift up and down, driving front and back, especially suitable for all kinds of large, medium and small mould repair;
4.Parameter adjustment adopts intelligent remote control, simple and quick operation;
5.Three-dimensional moving workbench can be electric hoist;
6.Light spot size electric regulation;
Samples:
Services:
1. Core technology. When we were a small factory, we have focused on the development of core components such as laser power supplies and optical path. Unlike other suppliers, they only sell through assembly equipment.
2. Independent research and development department. This means we can offer our customers customized machines and improve the equipment according to market changes
3. Dealer support plan. In the early stage of customers' market development, we provide technical parameters for the installation and use of equipment free of charge, share good marketing methods, help customers win the market and achieve success.
4. Strict testing. All of the suppliers we work with come from world-class manufacturers. Before the delivery, each machine needs to be tested and inspected for 48 hours (marking machine, welding machine) and 4-7 days (cutting machine) to ensure quality and safety.
5. Timely delivery. Each machine has an accurate assembly process and strict time control to ensure that customers receive goods in a timely manner.
6. After-sales service and guarantee. We offer a 2-year warranty and any problems occur during the period and we have a responsibility to resolve them. If any part of the machine is broken, we will repair it for free and send free accessories.
