Description:
The laser welding compares with other welding craft can realize the very many material welding, compares has the superiority, welds the component thermal deformation to be small, the attachment quality is high. The laser welding superiority in with can realize partially the very small scope heating characteristic, widely uses with the precision component like jewelry, the battery, the automobile industry, aviation industry some other applications and so on.
Specifications:

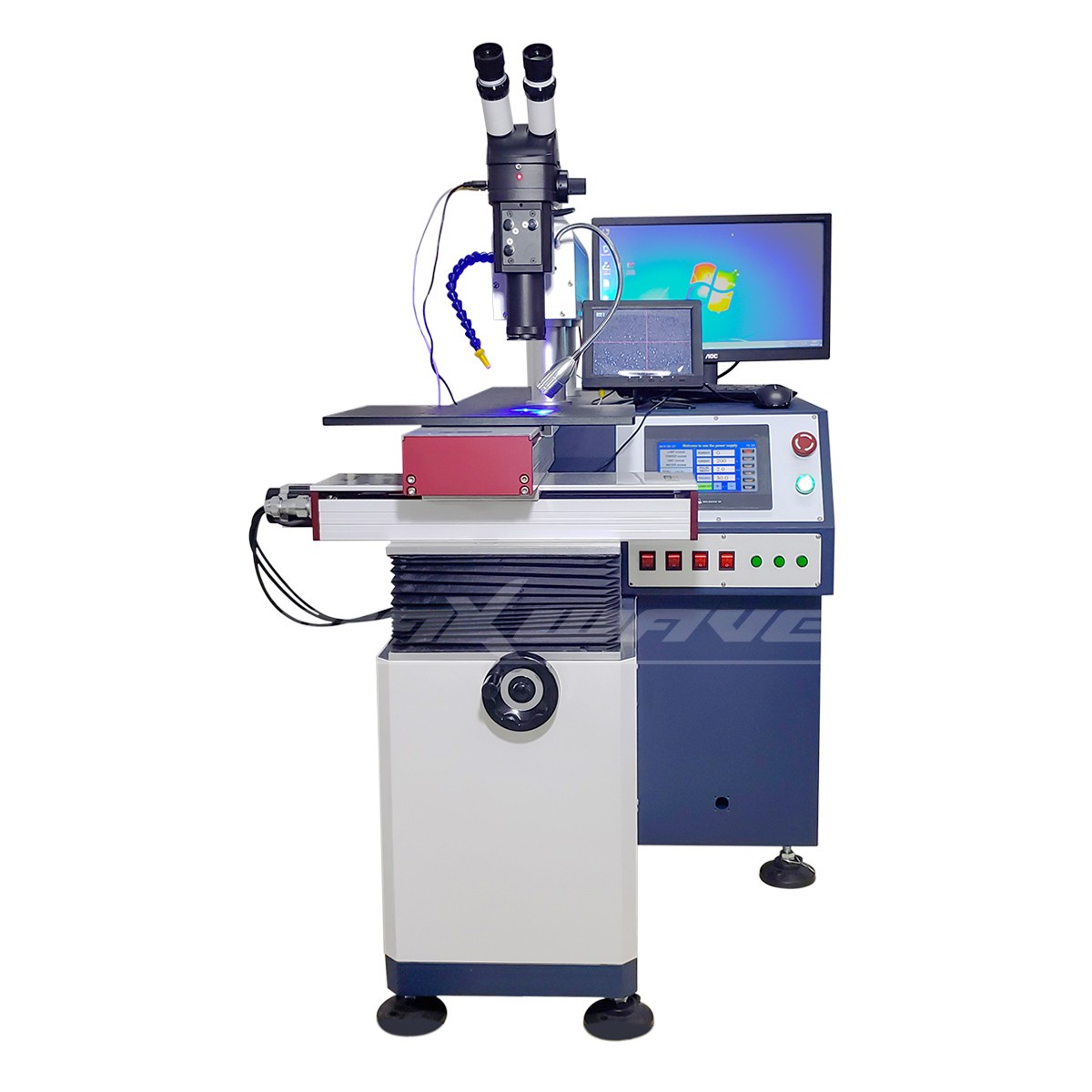

SPECIFICATIONS FOR LASER MOULD WELDING MACHINE
Type
MW-A200M
MW-A300M
MW-A500M
Three Axis Table
350*350mm
Table Capacity
≤350KG
Machine Battery
220V±10%/50/60z
380V±10%/50/60Hz
Laser Type
Nd:YAG Pulse Xenon Lamp
Spot Adjusting Range
0.1~3mm
Peak Wavelength
1064nm
Pulse Width
≤20ms
Rated Output Power
180W
270W
460W
Maximum Laser Power
200W
300W
500W
Pulse Frequency
≤50Hz
Laser Output Focal Length
100mm
Laser Cooling
Water Cooling
Monitor
Microscope( Rotate 360º)
Protective Gas
1(argon)
Cold Water Capacity
2700W
3500W
6500W
Wire Diamter
0.1mm~0.6mm
0.1mm~0.8mm
0.1mm~1.0mm
Dimension
Main Machine : 1250*580*1200mm
Controller
CNC2000 Automatic system
Chiller : 700*500*900mm
Advantages:
I. Ceramic converging cavity is imported from the Britain. It is corrosion resistant and high temperature resistant ,and has 8-10 years service life.
II. High production efficiency and high welder speed, realizing automatic mass production on the production line
III. The laser head can be adjusted for 360 degree
IV. The size of the light spots can be adjusted
V. The work bench can be moved in two dimensions
Features:
1. UK ceramic light-gathering cavity, anti-corrosion, heat-resistance, chamber(8-10 years of life), more than 8 million times life of Xenon lamp;
2. Using the World's most advanced automatic shading system, It eliminates the stimulation to the eyes in work;
3.Laser head can rotate 360 degrees, overall light path can rotate 360 degrees, electric lift up and down, driving front and back, especially suitable for all kinds of large, medium and small mould repair;
4.Parameter adjustment adopts intelligent remote control, simple and quick operation;
5.Three-dimensional moving workbench can be electric hoist;
6.Light spot size electric regulation;
Sample:
Service:
1. Core technology. When we were a small factory, we have focused on the development of core components such as laser power supplies and optical path. Unlike other suppliers, they only sell through assembly equipment.
2. Independent research and development department. This means we can offer our customers customized machines and improve the equipment according to market changes
3. Dealer support plan.
