Description
Description:

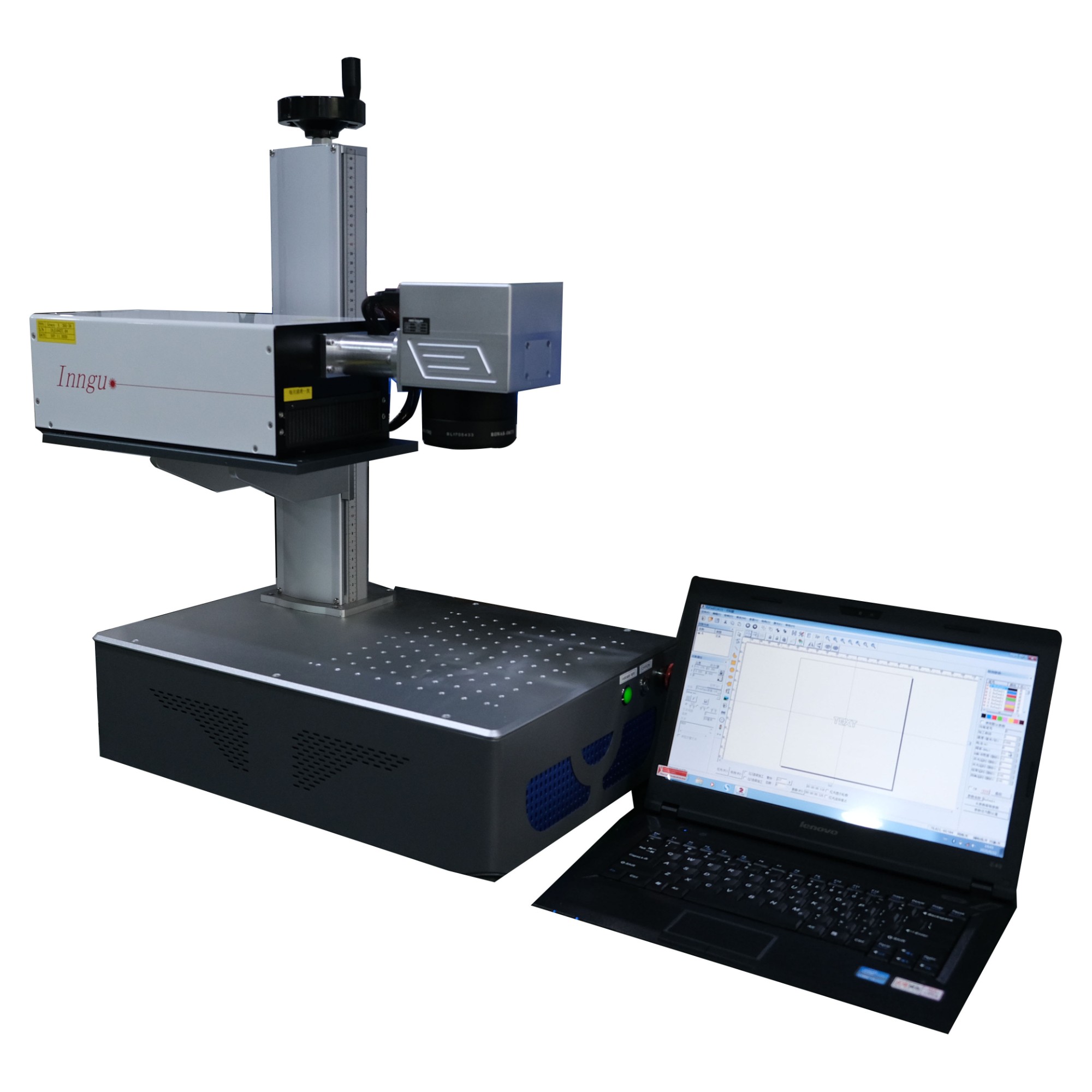

Principle of UV laser marking machine: Same as ordinary fiber laser marking machine, it also uses laser beam to print permanent marks on the surface of various materials. The reaction mechanism in UV laser processing is realized by photochemical ablation, that is, relying on laser Energy breaks the bonds between atoms or molecules, making them vaporize and evaporate as small molecules. The focused spot is extremely small, and the processing heat-affected zone is minimal, so it can be used for ultra-fine marking and special material marking.
With the rapid development of laser equipment and the increase in the power of UV laser marking machines, UV laser marking machines have been used in the high-end market for ultra-fine processing, marking the surface of packaging bottles for iPhone, cosmetics, medicine, food and other polymer materials. ; Flexible PCB board marking and scribing; silicon wafer micro-hole and blind hole processing; LCD liquid crystal glass, glassware surface, metal surface coating, plastic buttons, electronic originals, gifts, communication equipment, building materials and other fields .
Specification:
Product Name
UV Laser marking Machine
Power
3W/5W/7W
Laser Wavelength
355nm
Marking Depth
≤0.1mm
Power Consumption
700W
Repeat Accuracy
±0.003mm
Laser Beam Quality
M2<1.1
Min.Line Width
≤0.005mm
Min.Character
0.15mm
Marking Speed
≤2000mm/s
Repetition Frequency
0~40KHz
Marking Area
110mm X 100mm（optional）
Cooling Type
Air cooling / Water cooling
Controller
Computer With Marking Software
Controller Software
EZCAD
Computer And Marking Software
Industrial Design Computer,18.5 Large Screen LCD
Machine Size（L*W*H）
668*550*320mm
Net Weight
50KGS
Warranty
Two Years
Advantages:
- 1.Hyper-fine Laser marking base on Imported UV Laser's good light beam quality and small focusing spot.
-
- 2.Good processing effect and wide applicable material type base on mild heat-affected of UV Laser marking.
-
- 3.High processing accuracy, high marking speed and good stability base on imported high- speed galvanometer.
-
- 4.Convenient Operation:Convenient data processing with dedicated laser marking software.
-
5.Interface is simple andfriendly, easy operation.5. Available support file format: PLT,DXF,AI,SDT,BMP,JPG,JPEG,TGA,PNG,TIF,TIFF, etc.
6. Support one-dimensional code and two-dimensional code marking such as Code39,EAN,PDF417,DATAMATRIX, etc.
Application:
1.It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
2.Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
3.Pharmaceutical, food, beverage and cosmetics industry.
4.Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.5.It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc.

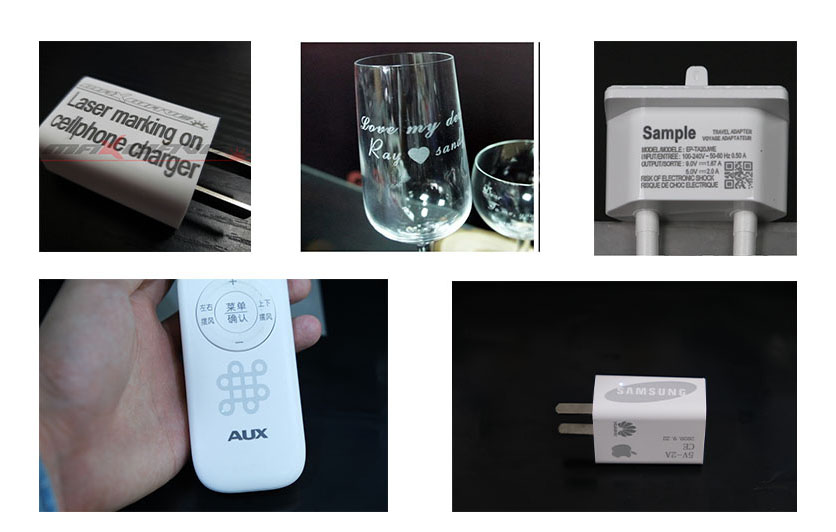

Sample:
Service:
1. Core technology. When we were a small factory, we have focused on the development of core components such as laser power supplies and optical path. Unlike other suppliers, they only sell through assembly equipment.
2. Independent research and development department. This means we can offer our customers customized machines and improve the equipment according to market changes
3. Dealer support plan. In the early stage of customers' market development, we provide technical parameters for the installation and use of equipment free of charge, share good marketing methods, help customers win the market and achieve success.
4. Strict testing. All of the suppliers we work with come from world-class manufacturers. Before the delivery, each machine needs to be tested and inspected for 48 hours (marking machine, welding machine) and 4-7 days (cutting machine) to ensure quality and safety.
5. Timely delivery. Each machine has an accurate assembly process and strict time control to ensure that customers receive goods in a timely manner.
6. After-sales service and guarantee. We offer a 2-year warranty and any problems occur during the period and we have a responsibility to resolve them. If any part of the machine is broken, we will repair it for free and send free accessories.
