Description
|
No. |
Items |
Parameters |
Unit |
|

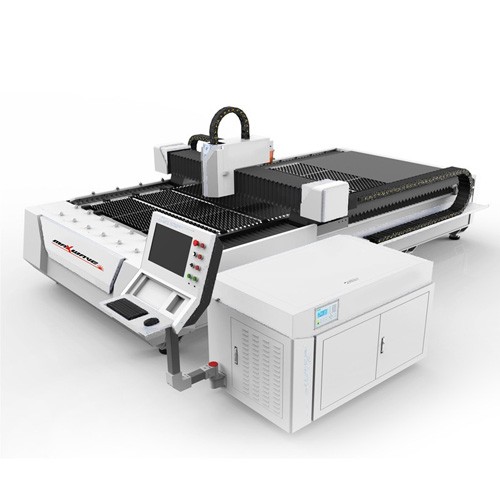

Laser cutting machine |
|||
|
1 |
Type |
Fiber laser |
|
|
2 |
Power |
500/750/1000/1500/2200 |
w |
|
Body |
|||
|
4 |
max.cutting speed |
40 |
m/min |
|
5 |
fast moving speed |
80 |
m/min |
|
6 |
Max.loda of worktable |
500 |
kg/sq.m. |
|
7 |
X,Yaxis max.acceleration |
1 |
g |
|
8 |
Working area |
1500x3000 |
mm |
|
10 |
Weight of machine |
5.5 |
Tons |
|
11 |
Motor |
Japan imported Fuji servo motors |
|
|
Accuracy |
|||
|
12 |
X,Y-axis positioning accuracy |
±0.02 |
mm |
|
13 |
X,Y-axis repeat positioning accuracy |
±0.01 |
mm |
|
14 |
Voltage |
380 |
V |
|
Software |
|||
|
15 |
Controller |
Shanghai BOCHU |
|
|
16 |
Software |
CYPCUT |
|
|
17 |
Graphic Format Supported |
DXF/AI |
|
1. High quality 1.carbon steel plate welding, structural stability
2. Five-axis center finishing, high strength and good rigidity
3. Integral cast aluminum beam, light weight, corrosion resistance, oxidation resistance, low density
4. Automatic focus adjustment, no manual
1.Entire
