Description
Product description:
Maxwave Laser is a professional manufacturer of high quality and high accurancy directtowall printing machine.Professional and excellent team and advanced production technology is our guarantee of quality products.

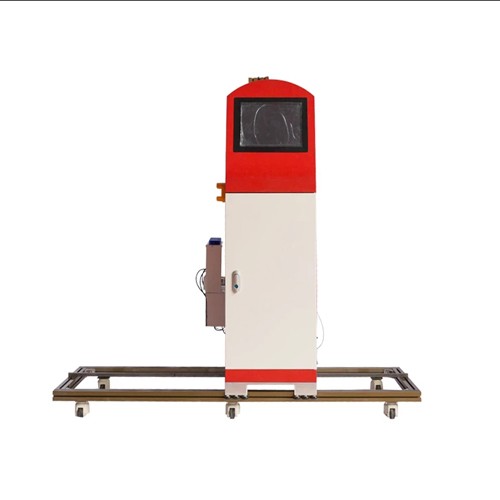

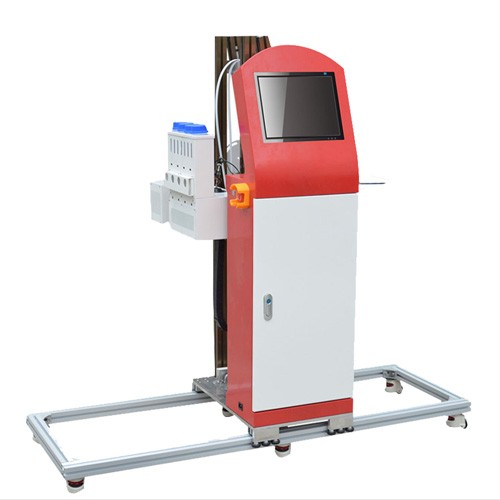

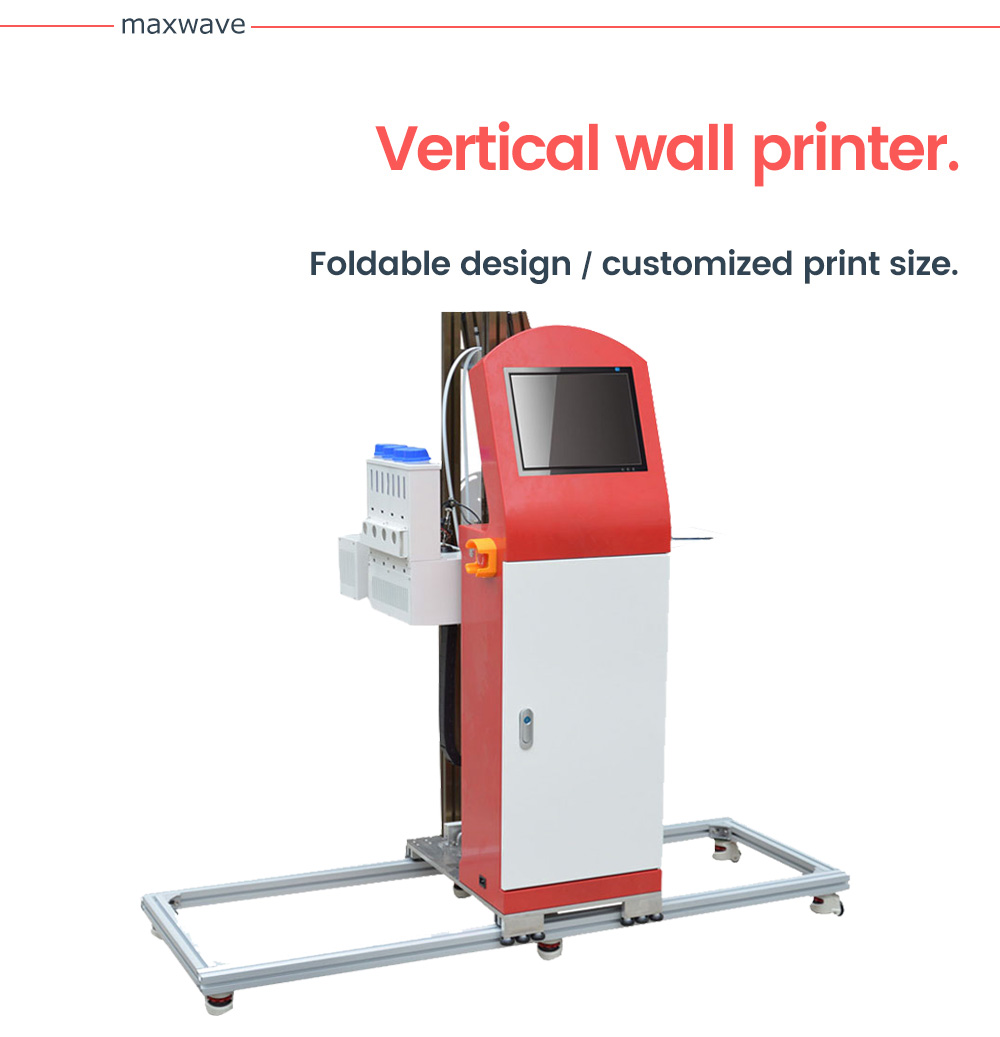

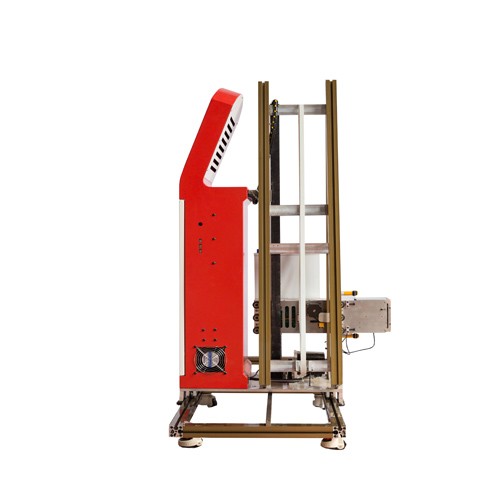

Maxwave Laser launched this vertical type versionofwall printing machine price.To meet the various demands for large format painting in the advertising and other industries, the Direct to wall printer can print on wall directly.Our customers just need to connect wall printing machine with laptop, input the picture to it. Then the picture can be painted on the wall automatically. It leads to a new trend of customized wall decoration.This direct towall decal printingis with higher precision and faster speed, present perfect quality of painting for you.
Specification:
Brand name
Maxwave
Ink
Special ink for synthetic pigment wall painting
Assembly method
Self steering fastener, pulley, track fastener, quick disassembly and assembly
Control mode
Wired handle, wired control
Motor technology
DC brushless servo motor, vector positioning technology, five star grating
Feeding system
Negative pressure automatic feeding, 340 ml pigment library, multi-color one, special color for, with a sealed plug and dust cover
Painting speed
High, medium, low, three-speed adjustable
Painting resolution
360*720dpior720*720dpior720*1080dpior720*1440dpi
Picture type
Support JPG, BMP, TIFF, PDF, AI, PSD, CDR and other files (some formats need to be converted)
Actual painted size
Height 2100mm, wide width can be extended
Power Supply
AC110V(90-132V)/AC220V(180-264V)AC,47-63HZ
Power consumption
No-load 20W, general 75W, Max to 250W
Noise
Standby <20dBA, drawing <50dBA
Operation
-10℃-60℃(14℉-140℉)10%-80%relative humidity, non condensable state
Storage
-30℃-60℃(-22℉-140℉)10%-80%relative humidity, non condensable state
System platform
Windows XP/Win 7/Win 8//Win 10
Motherboard configuration
Dual coreCPU,512MBmemory,USB2.0/3.0data interface
Machine language
Chinese,English(Customizable)
Print mode
Pass
Speed (per square meter per hour)
Quick mode
A
6Plane / hour
Production model
B
4Plane / hour
Quality model
C
3Plane / hour
Product Advantage:
1. This direct to wall inkjet printer adopts imported Japan piezoelectric nozzles.
2. This horizontal wall printer use the Perfect Laser wall painting specific ink, no need to heat at minus 10 °C to zero 60 °C in the normal work environment, no ice, and constantly inking.
3. Single base color, one-way ink supply channel. Even for the system of automatic pressure supply, 340ml pigment library, multi-color one, easy to take, and the screen of the horizontal wall printer is clear and bright.
4. The body design of horizontal wall printer lines smooth, without a large chassis, the program software all integrated to facilitate the demolition and handling, to work under any environment.
5. This wall mural printer printing resolution is of 360 * 720dpi or 720 * 720dpi or 720 * 1080dpi.
6. Inkjet screen actual size of the wide format printing machine: high 2100mm wide 1700mm, wide more than 1700mm of the screen need to do seamless stitching, seamless splicing will not affect the overall effect of the screen.
Features:
1
Japan Epson Print head
Ultra-strength corrosion-resistant high-density orifices up to 1280, 60k high-speed ignition frequency, fast printing speed, 3.0PL ink dot, high printing accuracy, one nozzle controls 4 colors. There is a circuit insulation constant temperature system inside the nozzle, which is not affected by the viscosity of the ink temperature, the printing pattern is clear, and the ink is smooth. It is widely used today and is recognized as the best and most cost-effective nozzle.
2
Imported ultrasonic induction probe
Automatically sense the wall distance to ensure that the nozzle is not affected by the unevenness of the wall. The height of the wall is not more than 3 cm, and it can be sensed and automatically adjusted, one second / 30 times.
3
Control device motherboard
It adopts special wall painting machine special motherboard, which has stable performance, strong compatibility, strong compatibility, easy to report error and strong stability compared to other brands.
4
LED UV curing light
It can instantly cure the ink, which can achieve the effect of drying the tile glass, which also determines the biggest advantage of the machine: no restrictions on any material printing
5
Piezoelectric ink supply device
In the high frequency printing process to maintain a perfect output, color ink is divided into four independent piezoelectric ink supply systems, to maximize the impact of ink fluency on the nozzle, greatly improving the stability of the equipment.
6
Aviation plug
All external wire ends of the whole machine use aviation plugs. Effectively prevent machine leakage, electric shock, poor contact, etc.
7
servo motor
The motor drive system adopts the imported servo motor from Germany to solve the problem of inaccurate. The response speed is fast, the performance is more stable, and the durability is long. The motor has its own brake and the brake motor of the power-off motor effectively prevents the nose from falling.
8
Folding convenience
Since the machine can be folded, this greatly increases the convenience of transportation. Cars, vans, and SUVs can be carried.
9
Wall environmentally friendly ink
The ink is certified by the manufacturer and does not contain any components that damage the nozzle. The printing is smoother, the nozzle life is longer, the image is bright, waterproof and sunscreen, and it is stored for a long time.
10
Professional Rip Color Control Software
Efficient workflow, simple and easy-to-understand user interface, excellent image processing, rich color management, and professional color processing.
11
Efficient and stable USB3.0 interface
USB3.0 transmission rate is up to ten times that of USB2.0, which is highly efficient and energy-saving. It can be easily handled when the task is large. The anti-interference ability of optical fiber transmission is stronger and the print output is more stable.
Sample:
